Full kit — mid-size

XR-502002

xRover REHA All-in-One M

Price depends on configuration, available on request

Colors (6)

The color can be customized to your preference — contact us with your own design.

Contact dealer Test drive

Foundation-based funding

Many families receive a contribution from foundations. Foundations decide on the amount individually.

About the product

Full equipment for shared adventures.

xRover All-in-One extends the Standard with a full set of accessories. It includes the cycle set for family bike trips, a rain cover, a windstopper and a mosquito net. Everything is ready for different uses from the very start.

Size M is designed for users weighing up to 80 kg and up to around 150 cm tall.

ePower Assist and the Beach Set are sold separately.

Frame weight 4.1 kgLoad capacity 80 kg, user height up to 150 cmReady weight 12.9–17.9 kgMetal joints TH 88 — no plastic in load-bearing connections5-point safety harness, side panels and clampsCycloset, rain cover, windstopper and mosquito net includedDesigned and assembled in Prague

What's in the box

Monolithic aluminium frame

Seat

Five-point safety harness with padding

Canopy

Large rear bag

Tropiko mosquito net

20" rear wheels with drum brakes and parking lock

6" swivel front wheel with fork

Wrist safety strap

Connection elements for additional modules

Wheel bag

14" outdoor front wheel with fork

Bicycle tow bar with full accessories and fender

Windstopper

Rain cover

Handle pouch or bag (customer's choice)

Postural insert

Metal TH 88 joints

Wheel type: plastic (standard equipment)

Technical specifications

Frame

MaterialAluminium EN AW 6060/6061/6082

Frame weight4.1 kg

JointsMetal TH 88

FinishAnodizing / powder coating

FoldingYes — compact fold (handle, arch, wheels)

FastenersStainless steel A2

Dimensions

Wheelbase845 mm

Doorway clearance76 cm (guaranteed 80 cm)

Seat width36 cm (seated)

Seat depth33 cm

Backrest height95 cm

Handle height110 cm (standard) / 117 cm (long)

Wheels & brakes

Rear wheels20" solid with drum brakes

Outdoor front wheel14" with fork

Buggy front wheel6" swivel 360°

Drum brakes70 mm diameter

Rear-wheel camber12°

Load & safety

Max. load80 kg

Max. user height150 cm

Safety harness5-point with safety strap

Ready weightdepending on installed components — 12.9 – 17.9 kg

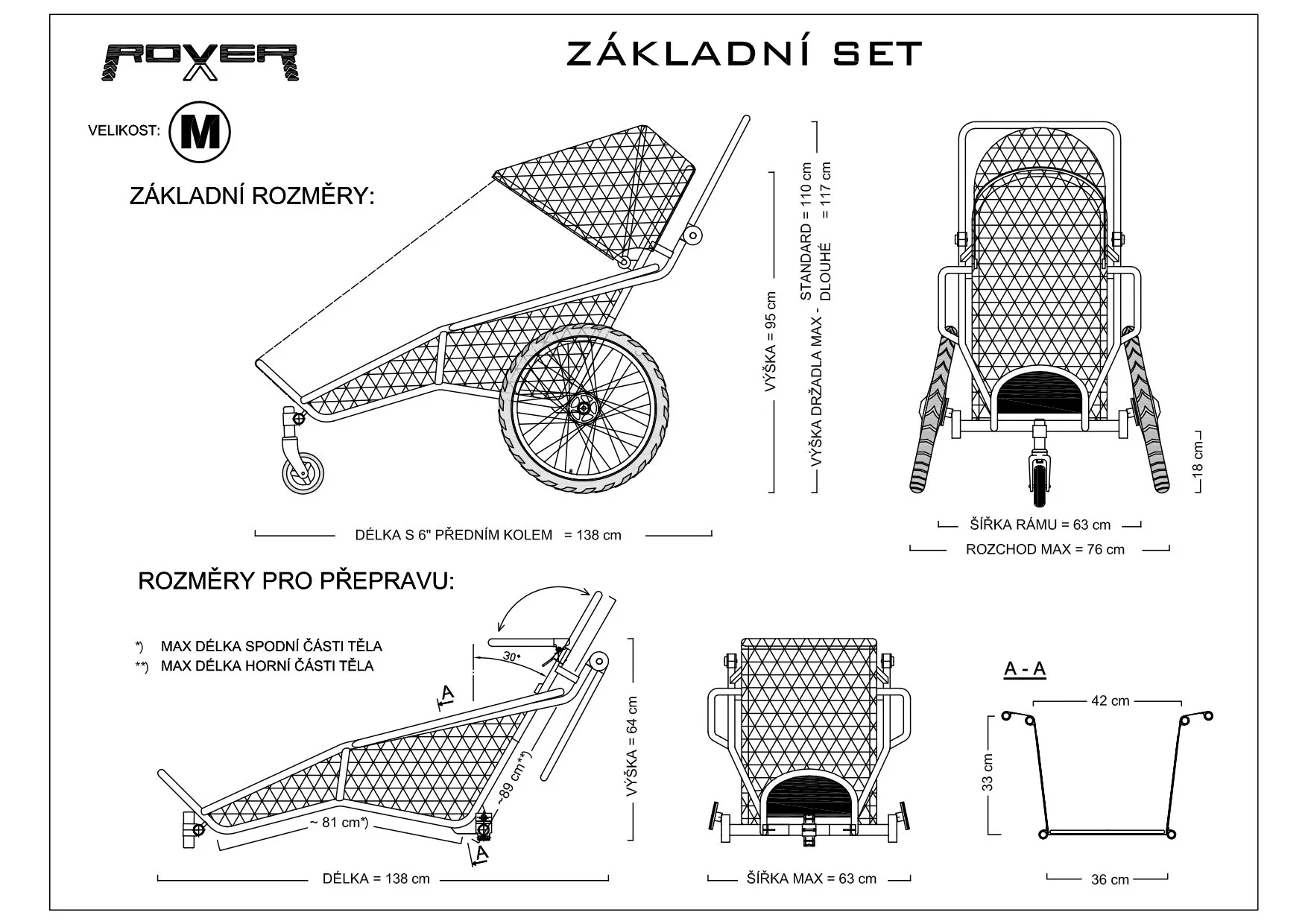

Technical drawing

Downloads

User manual — xRover MPDF Manual — Beach setPDF Manual — SKI setPDF Notice — do not sit on the buggyPDF User manual — xRover Reha (DE)PDF Technical data — xRover Reha (DE)PDF Scope of delivery — xRover Reha (DE)PDF EU Declaration of Conformity – xRover Reha S/M/L (13 July 2026)PDF

Certifications

CE marking

Class I medical device with CE marking under Regulation (EU) 2017/745 (MDR).

SZÚ Brno certificates

xRover Reha S, M and L: SZÚ Brno certificate B-00025-26 for EN 12183.

xRover Reha with ePower Assist: SZÚ Brno certificate B-00026-26 for EN 12184.

Technical information

EN ISO 14971 – risk management for medical devices.
EN ISO 15223-1 – symbols used with medical device information.
EN ISO 20417 – information supplied by the medical device manufacturer.
EN ISO 13485:2016 – medical device quality management systems (standard listed in the EU declaration of conformity).

Recommended accessories

Rain cover

Premium rain cover that fully shields the upper part of the buggy. Made from a sturdy transparent material.

Winter bag

Universal insulated winter bag. Detachable, machine-washable foot cover; slots for 5-point harness.

Canopy sun visor

An extension to the canopy that covers more area. Can be color-matched to the buggy.

View all

Frequently asked questions

Warranty terms

xRover products carry the 24-month statutory period for claiming defects. The manufacturer also provides a warranty: on the load-bearing frame and welds 4 years, or 5 years with annual servicing, on other mechanical parts 24 months, or 3 years with annual servicing.

The warranty covers manufacturing defects in materials and workmanship under normal use in accordance with the user manual. It does not cover normal wear and tear, mechanical damage, or unauthorised modifications.

Full warranty terms are available on the Warranty page →

Payment methods

Payment is accepted via the following methods:

Bank transfer based on a deposit invoice
Invoice with payment terms (for B2B partners)
Foundation financing (all models, including accessories and ePower Assist)

For a specific quote and payment terms please contact your authorised dealer.

Service and support

In-warranty service is provided by the manufacturer at its service centre in Prague, or by a service it has authorised in writing. Post-warranty service is available with original spare parts on favourable terms.

Service department contact: +420 704 882 920 / info@volter.cz

Shipping and delivery

Distribution runs through 19 dealers in 21 countries on 3 continents. Delivery terms and lead times vary by region and model availability.

Personal pick-up is available at the Prague showroom by appointment. For international shipping, contact your nearest dealer.
