Loading photo…Off-road special — mid-size
XR-502006xRover REHA Buggy M
Price depends on configuration, available on request
Colors (6)
The color can be customized to your preference — contact us with your own design.
Foundation-based funding
Many families receive a contribution from foundations. Foundations decide on the amount individually.
About the product
A reinforced frame and snowbike wheels for demanding terrain.

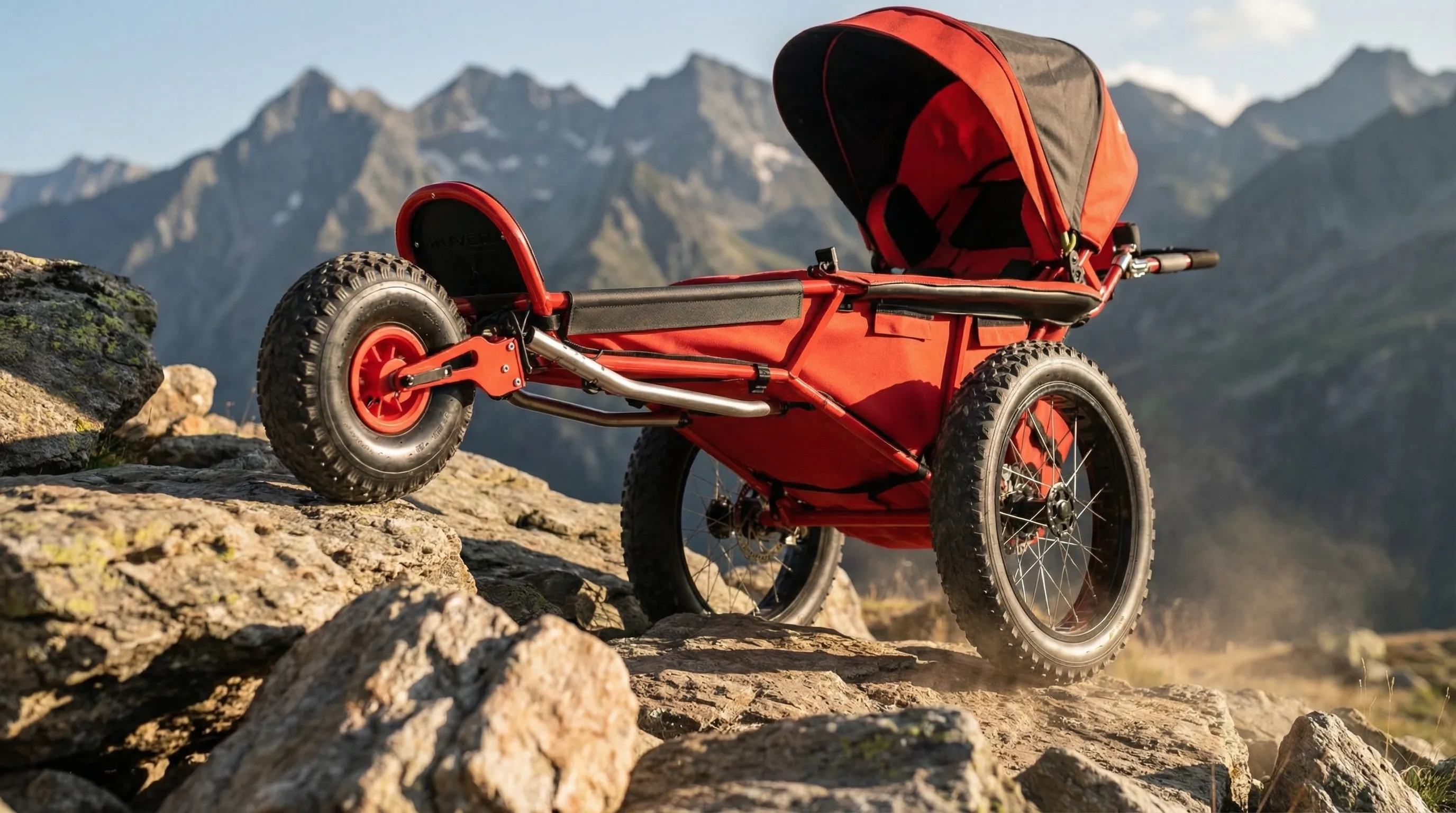

xRover Buggy is the configuration with a special reinforced frame and 20″ × 4.0″ snowbike wheels. It widens where you can go beyond paved paths and is ready for family trips into nature.
Size M is designed for users weighing up to 80 kg and up to around 150 cm tall.
Frame weight 4.3 kgLoad capacity 80 kg, user height up to 150 cmReady weight 15.9–20.9 kgMonolithic reinforced constructionComplete All-in-One equipment as standardDedicated transport bag includedDesigned and assembled in Prague
What's in the box
Special monolithic aluminium-reinforced construction
Seat
Five-point safety harness with padding
Canopy
Large rear bag
Tropiko mosquito net
20" rear wheels with drum brakes and parking lock
6" swivel front wheel with fork
Wrist safety strap
Connection elements for additional modules
Wheel bag
14" outdoor front wheel with fork
Bicycle tow bar with full accessories and fender
Windstopper
Rain cover
Handle pouch or bag (customer's choice)

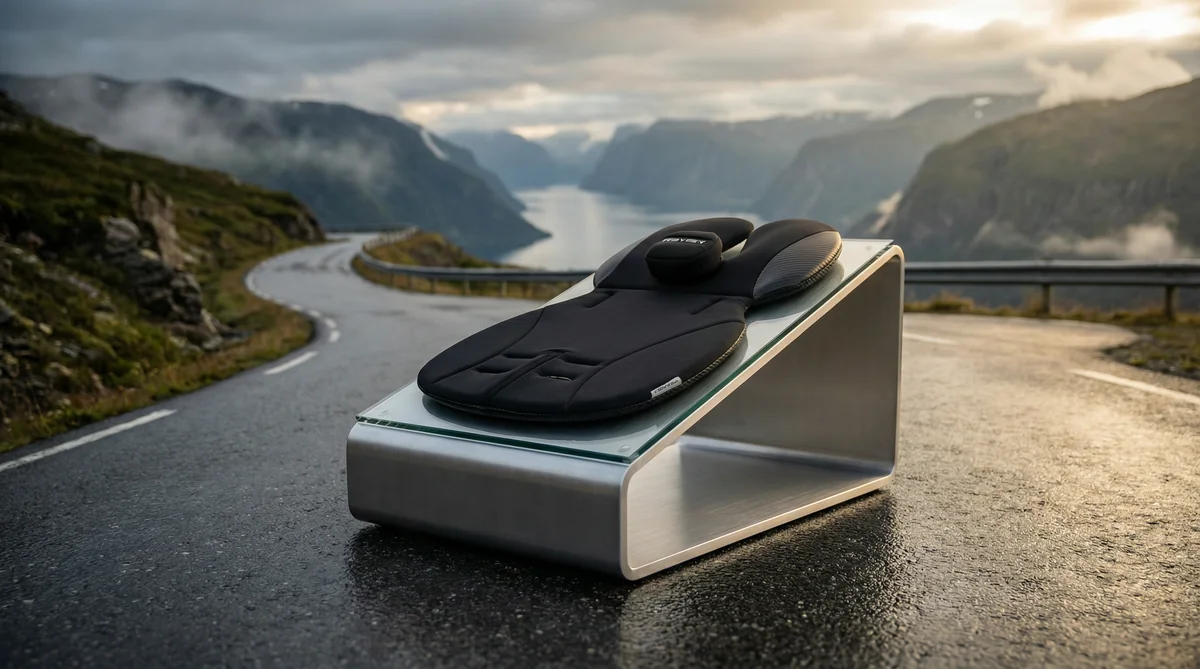

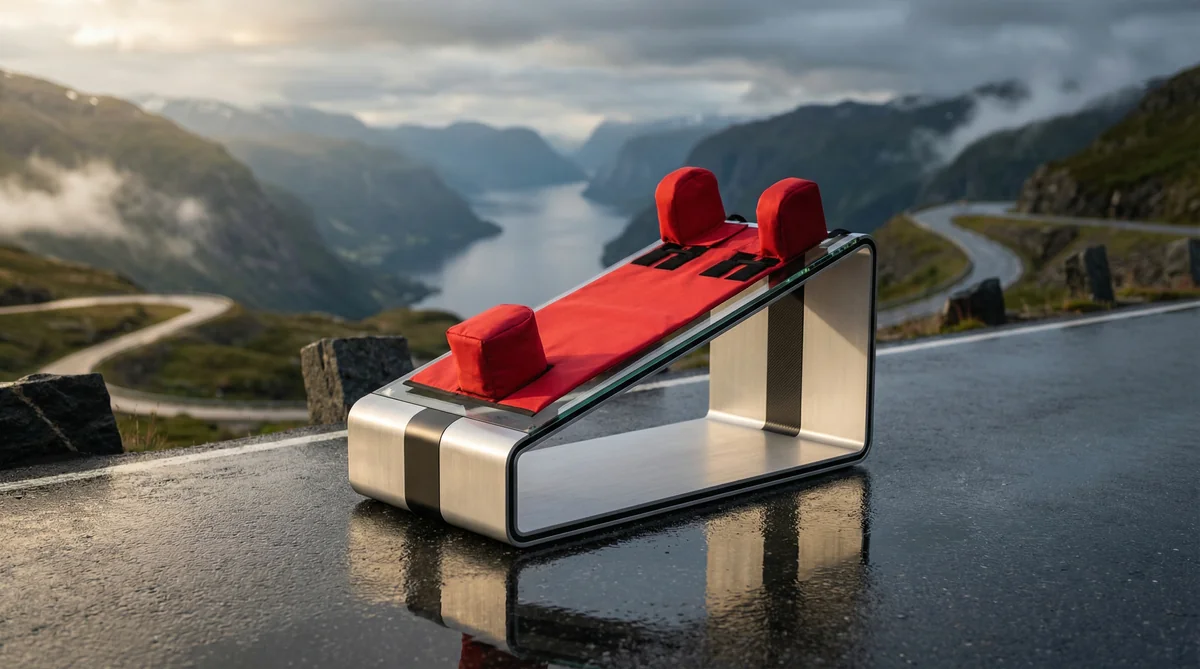

Postural insert
Metal TH 88 joints
BUGGY 20″ × 4.0″ wheel set
BUGGY front wheel with fork
Dedicated BUGGY wheel bag
Wheel type: plastic (standard equipment)
Technical specifications
Frame
MaterialAluminium EN AW 6060/6061/6082
Frame weight4.3 kg
ReinforcementMonolithic aluminium
JointsMetal TH 88
FinishAnodizing / powder coating
FoldingYes — compact fold (handle, arch, wheels)
FastenersStainless steel A2
Dimensions
Wheelbase845 mm
Doorway clearance92 cm
Seat width36 cm (seated)
Seat depth35 cm
Backrest height104 cm
Handle height119 cm (standard) / 126 cm (long)
Wheels & brakes
Rear wheels20" solid with drum brakes + Buggy 20″ × 4.0″ set
Front wheel6" 360° swivel + 14" outdoor with fork + Buggy with fork
Drum brakes70 mm diameter
Rear-wheel camber12°
Load & safety
Max. load80 kg
Max. user height150 cm
Safety harness5-point with safety strap
Ready weightdepending on installed components — 15.9 – 20.9 kg
Terrain stabilityMaximum (monolithic reinforcement)

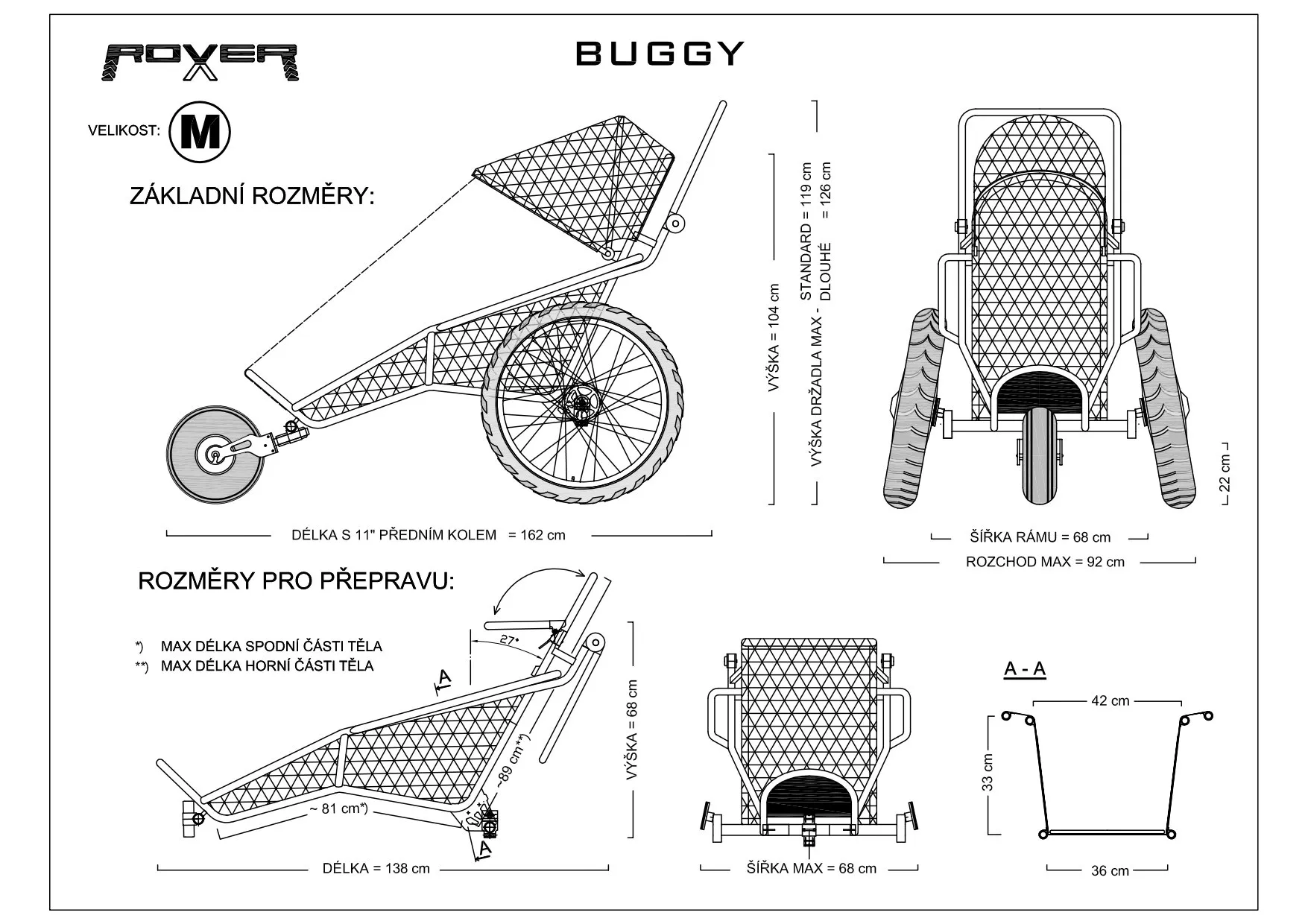

Technical drawing
Downloads
Certifications
CE marking
Class I medical device with CE marking under Regulation (EU) 2017/745 (MDR).
SZÚ Brno certificates
xRover Reha S, M and L: SZÚ Brno certificate B-00025-26 for EN 12183.
xRover Reha with ePower Assist: SZÚ Brno certificate B-00026-26 for EN 12184.
Technical information
- EN ISO 14971 – risk management for medical devices.
- EN ISO 15223-1 – symbols used with medical device information.
- EN ISO 20417 – information supplied by the medical device manufacturer.
- EN ISO 13485:2016 – medical device quality management systems (standard listed in the EU declaration of conformity).
